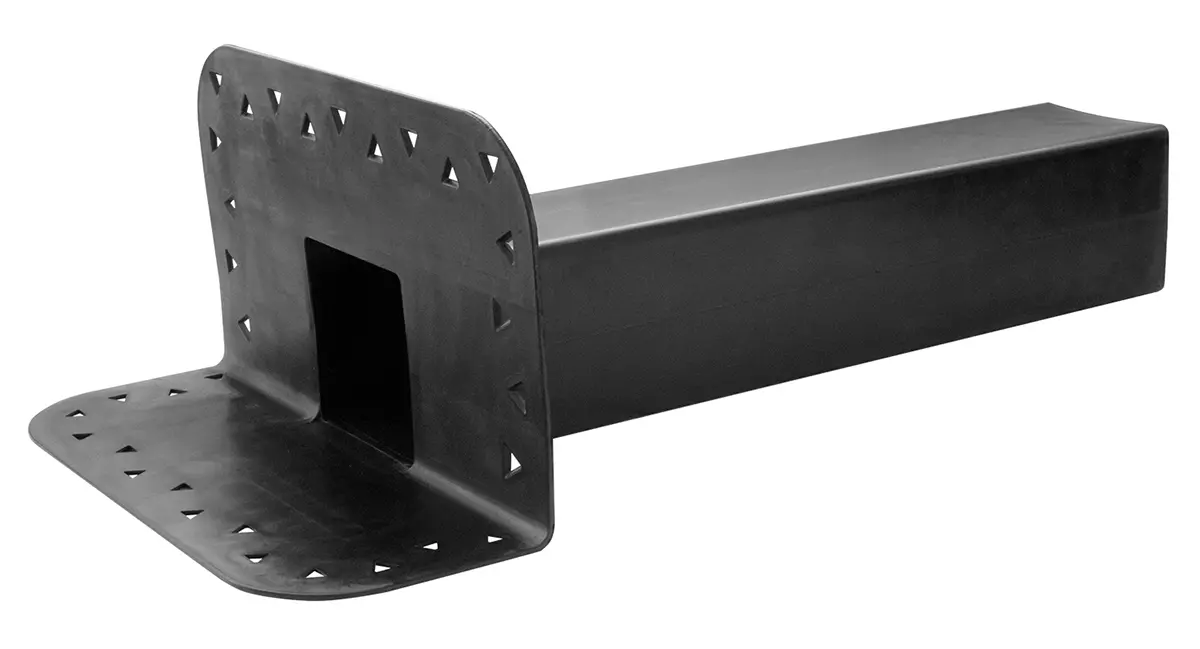

Flat-Roof Deck Scupper/Parapet Drain

Flat-Roof Deck Scupper & Parapet Drains – What Are They Used For?

Scupper drains and parapet drains are essential components of a flat roof drainage system. Their primary purpose is to safely remove rainwater from the roof surface, preventing ponding, leaks, and structural damage.

Scupper Drains:
A scupper is an opening or channel cut through the edge of a parapet wall or the roof perimeter. It allows water to drain directly from the roof deck to the outside, often discharging into a downpipe or a projecting spout (called a scupper tongue).

Parapet Drains:
These are typically circular or rectangular outlets built into the parapet wall itself. They connect to internal or external downpipes and can often be fitted with a leaf guard to prevent debris from blocking the system.

Typical Usage Locations:

• Along low-point edges of parapet walls

• Cut through coping stones or wall facings

• Integrated into metal flashing systems at roof perimeters

Key Uses & Benefits:

• Prevent water ponding – Standing water adds excessive weight and accelerates membrane degradation. Drains ensure water is shed quickly.

• Protect the roof membrane – Reducing prolonged water exposure extends the life of single-ply, built-up, and liquid-applied roofing systems.

• Meet building regulations – Most UK building codes require flat roofs to have adequate drainage, often via scuppers, parapet drains, or internal outlets.

• Work alongside primary drains – Scuppers often serve as secondary (overflow) drains in case primary roof drains become blocked.

• Simple, low-maintenance design – Unlike internal drains with buried pipes, scuppers discharge visibly, making blockages easier to spot and clear.

Areas of Use

• flat roof scupper drain

• parapet wall drain

• roof deck drainage

• flat roof overflow drain

• scupper outlet for parapet

• perimeter roof drain

• rainwater discharge for flat roofs
