Self-Levelling Pedestals Kits | 41-141mm Adjustable Paver & Joist Supports

Product Overview & Features

StrataRise’s professional grade PEDESTAL KITS provide a superior “out of the box” solution, allowing you to achieve a perfectly level floor, even on sloping ground!

We currently offer 2 sizes of kit (4 or 12 pedestals), with versions for pavers or for joists. Each kit offers a quick and easy-to-install flooring solution, eliminating the need for most base preparation, thereby saving you time and effort.

Our pedestals are amongst the strongest and most versatile available and offer many unique features.

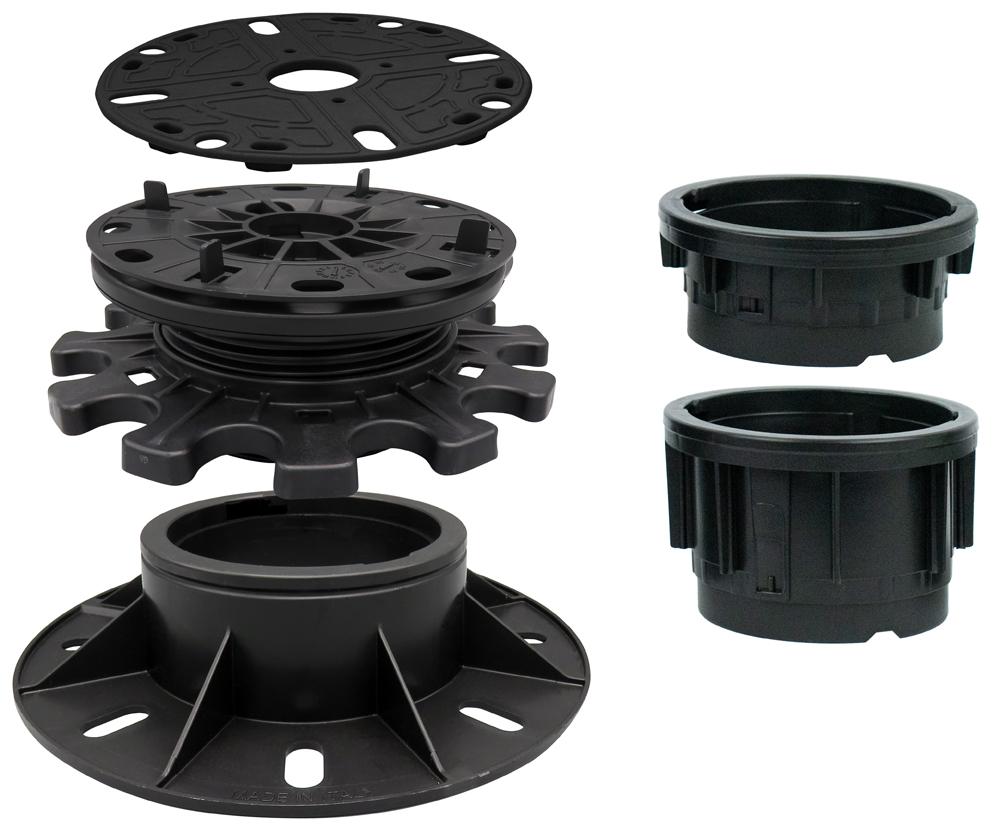

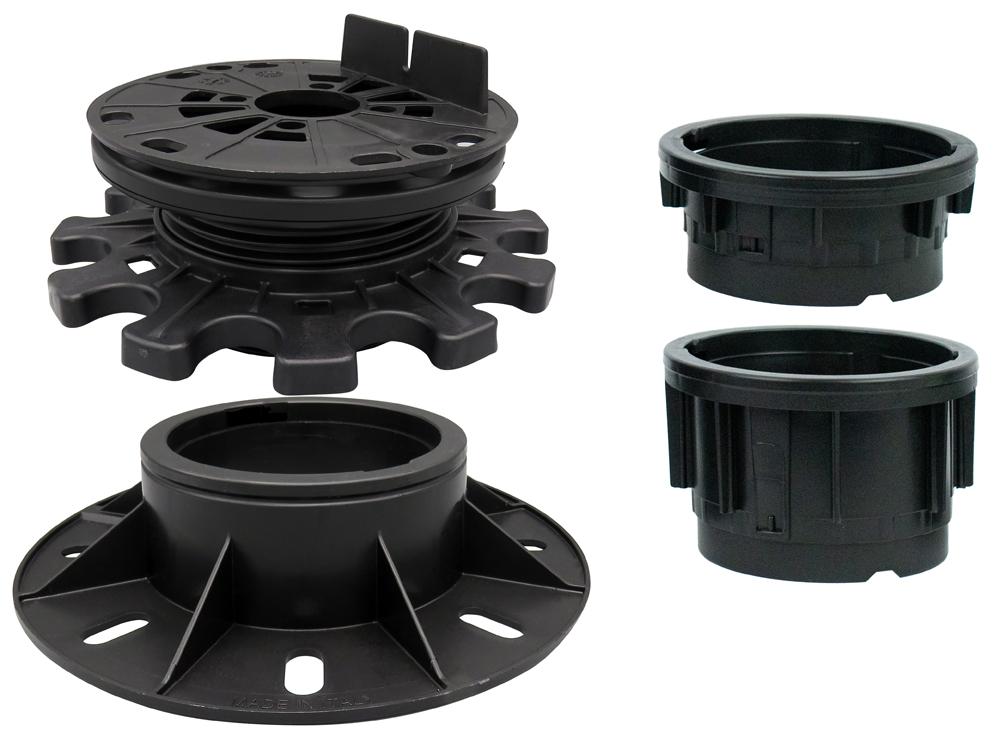

Kit contents

4 or 12 each of:

• Base Plates with Adjustable Self Level Heads, 1.6 - 2.6'' (41 - 66mm)
• Acoustic Rubber head rings (Paver kits only);
• 1'' (25mm) and 2" (50mm) extenders - giving a maximum height of up to 5.5" (141mm).

 Paver pedestal head has 4 spacer tabs of 0.15'' (4mm) thickness. Tabs can be removed as required. Joist pedestal head has a single tab with provision for fixing to the joist where appropriate

An easy to operate threaded adjustment ring makes raising or lowering the head really quick and precise. Height adjustments can be made without removing the paver or tile thus allowing for extremely easy and fast installation.

The large 200mm (8”) base plate provides stable support on most surfaces. Scribe marks are provided on the underside to assist in trimming for use at sides and corners of installations.

Noise reduction options

An optional 3mm (1/8") thick anti-slip, cushioning, rubber base pad is available for use on membranes, etc. This effectively reduces transmitted noise where pavers are mounted on balconies or roof areas. We recommend the use of our acoustic cushioning ring for the support head area for tile and paver installations. These help to bed corners securely, prevent any rattling, and reduce transmitted noise through the support system.

Weight bearing

4166ML self-levelling pedestal supports are tested to withstand loads of 650Kg (1430lbs) at their weakest setting, i.e. maximum height adjustment with just one thread engaged.

StrataRise Pedestals ... the professional's choice!

Applications & Suitable Surfaces

Thanks to the large support area of the pedestal bases the system can be installed on top of waterproofing membranes, rigid insulating panels and onto any solid, compact laying surface.

The circular shape of the base adapts well to the course of the laying surface, even when this is not perfectly regular. The base incorporates holes for the outflow of water and two guide lines to be used if cutting is required when laying the supports at perimeter edges or corners.

Available in two versions, these versatile pedestal supports can be used with any type of self-supporting tile or paver. as well as with wooden, WPC composite or metal joists.

Professional Grade Design

Designed for the professional, with industry leading specifications, StrataRise pedestals are fast and easy to work with, allowing precise height adjustment without any need to lift off pavers or joists. Bayonet fitting extenders enable easy customisation to any height.
