Self-Levelling Pedestals for Pavers | 41-66mm Adjustable Paver Supports | StrataRise
Designed for use on sloping surfaces. Adjustable from 41mm to 66mm (1.6" to 2.6") - height extendable to 20" + with extensions
Product Overview & Features

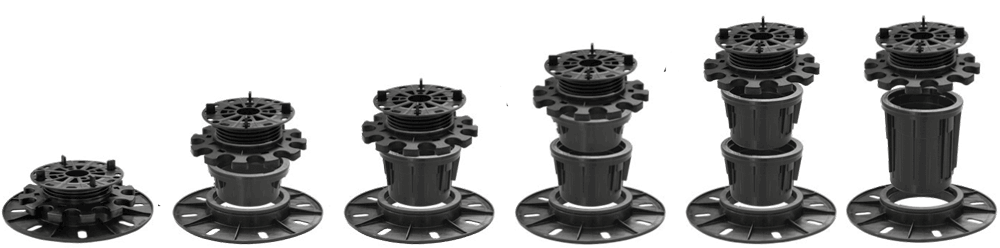

StrataRise Multi-Level 4166 Self-Leveling Pedestals will automatically compensate for slopes from 0 to 5% and are adjustable in height from 41mm to 66mm (1.6" to 2.6"). The adjustable height can be increased by using one or more of our QuickClick, bayonet fitting, extension pieces to achieve the required height range. The system can be extended to 500mm (20") high, or more as required.
Optimised for Professional Installation

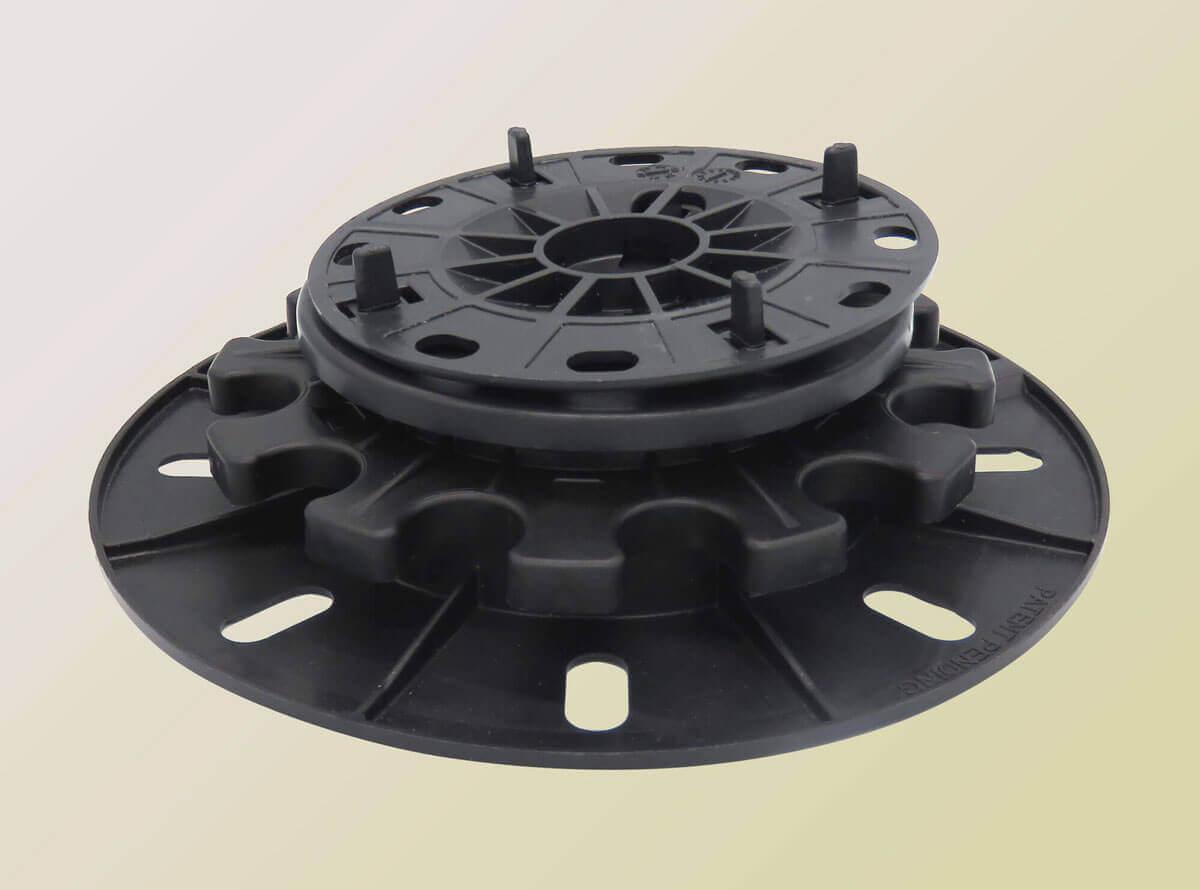

The multi-level self-levelling pedestals make it easy to achieve perfect flatness of the final patio, balcony or path. The system is very easy to use and aids quick, precise and professional installation. Each support is composed of a threaded self-levelling head section, with 4 tabs 4mm (5/32") in width for tile or paver spacing. The spacer tabs are individually removable to enable the supports to be used in areas where no separation is required, such as under the centers of large slabs, or on sides.
An easy to operate threaded adjustment ring makes raising or lowering the head really quick and precise. Height adjustments can be made without removing the paver or tile thus allowing for extremely easy and fast installation.
The large 200mm (8”) base plate provides stable support on most surfaces. Scribe marks are provided on the underside to assist in trimming for use at sides and corners of installations.
Noise reduction options
An optional 3mm (1/8") thick anti-slip, cushioning, rubber base pad is available for use on membranes, etc. This effectively reduces transmitted noise where pavers are mounted on balconies or roof areas. We recommend the use of our acoustic cushioning ring for the support head area for tile and paver installations. These help to bed corners securely, prevent any rattling, and reduce transmitted noise through the support system.
Weight bearing
4166ML self-levelling pedestal supports are tested to withstand loads of 650Kg (1430lbs) at their weakest setting, i.e. maximum height adjustment with just one thread engaged.
StrataRise Pedestals ... the professional's choice!

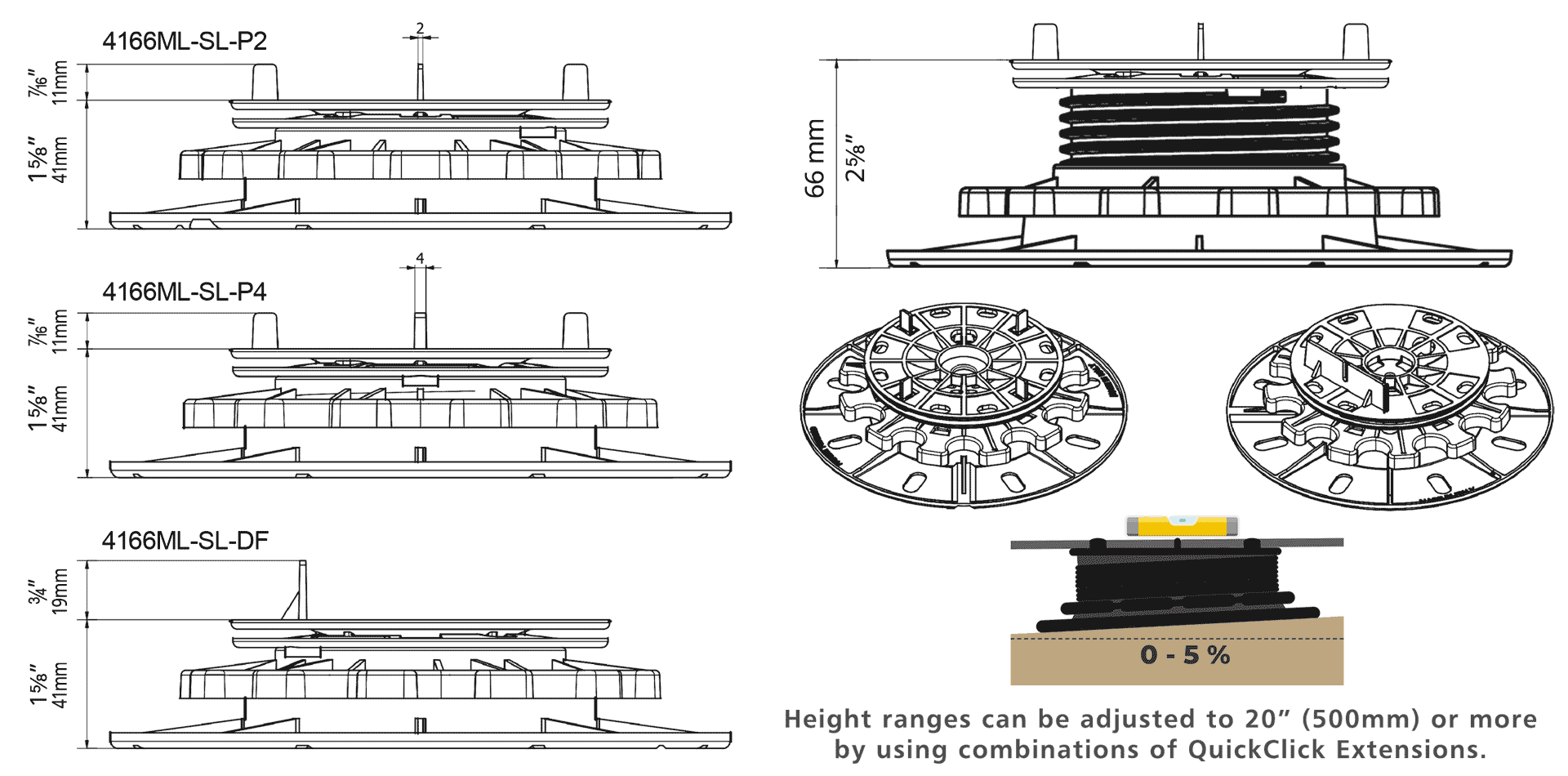

Technical Data
| Ref No. | 4166ML-SL-P4-30 | 4166ML-SL-P4-10 |
| Description | Self-Levelling Support Pedestal for Tiles & Pavers | |
| Height Adjustability | 41mm to 66mm (1.6" to 2.6") P4 = 4mm (5/32") Spacers | |
| Pack Qty. | 30 | 10 |
| Pallet Pcs. | 1200 | 900 |
Applications & Suitable Surfaces
Thanks to the large support area of the pedestal bases the system can be installed on top of waterproofing membranes, rigid insulating panels and onto any solid, compact laying surface.
The circular shape of the base adapts well to the course of the laying surface, even when this is not perfectly regular. The base incorporates holes for the outflow of water and two head-cut lines to be used when laying the supports at perimeter edges or corners.
Available in two versions, this versatile pedestal support can be used with any type of self-supporting tile or paver.
Professional Grade Design
Designed for the professional, with industry leading specifications, our pedestals are fast and easy to work with, allowing precise adjustment without any need to lift off pavers or tiles to make adjustments. Bayonet fitting extenders enable easy customisation to any height. With just 4 components (pedestal plus 3 sizes of extenders) you have the complete system to suit all heights and nearly every application. Low profile versions are also available - see our 2442LP-SL Range -
2442 Range Click Here.
Frequently Asked Questions
What slope can these self-levelling pedestals compensate for?
The 4166ML-SL-DF pedestals are designed to automatically compensate for surface slopes from 0 to 5%, making them ideal for creating level patios. balconies or paths on gently inclined surfaces or drainage slopes.
What is the maximum load capacity of a single pedestal?
Each pedestal is tested to withstand loads of 650 kg (1430 lbs) at its weakest setting (maximum height with minimal thread engagement). This high load rating ensures a safe and stable foundation for patios, balconies or paths.
Can I use these pedestals on a waterproof membrane or insulation?
Yes. Thanks to the large 200mm (8") base plate, the system is perfectly suitable for installation on top of waterproofing membranes, rigid insulating panels, and any other solid, compact surface. An optional anti-slip rubber base ring is available for extra protection and noise reduction on sensitive surfaces.
How do I extend the height beyond 66mm?
The standard height range is 41-66mm. To achieve greater heights (up to 500mm or more), you can easily add one or more bayonet-fitting QuickClick extension pieces. This modular system allows for highly customizable height adjustment.
Frequently Asked Questions
What slope can these self-levelling pedestals compensate for?
The 4166ML-SL-DF pedestals are designed to automatically compensate for surface slopes from 0 to 5%, making them ideal for creating level patios. balconies or paths on gently inclined surfaces or drainage slopes.
What is the maximum load capacity of a single pedestal?
Each pedestal is tested to withstand loads of 650 kg (1430 lbs) at its weakest setting (maximum height with minimal thread engagement). This high load rating ensures a safe and stable foundation for patios, balconies or paths.
Can I use these pedestals on a waterproof membrane or insulation?
Yes. Thanks to the large 200mm (8") base plate, the system is perfectly suitable for installation on top of waterproofing membranes, rigid insulating panels, and any other solid, compact surface. An optional anti-slip rubber base ring is available for extra protection and noise reduction on sensitive surfaces.
How do I extend the height beyond 66mm?
The standard height range is 41-66mm. To achieve greater heights (up to 500mm or more), you can easily add one or more bayonet-fitting QuickClick extension pieces. This modular system allows for highly customizable height adjustment.
Where can I purchase these pedestals?
You can purchase StrataRise 4166ML-SL-P4 pedestals directly from our secure webshop at stratarise.uk. Prices start at £3.86 per pedestal, available in 10-pack and 30-pack options, with automatic quantity discounts for larger orders. All prices include VAT and UK delivery. Click the 'Buy Now' button on this page to visit our webshop.
Purchase & Pricing
£3.86 per pedestal (incl. VAT & Carriage)
or less for bigger packs and quantities
Pack Options:
- 10-Pack: £42.60
- 30-Pack: £115.80 (best value)
✓ Secure Wix checkout
✓ Fast UK delivery
✓ Bulk discounts available
✓ Prices incl. VAT & Carriage
Note: You'll be redirected to our secure webshop at stratarise.uk to complete your purchase. All transactions are protected by SSL encryption.
